NOT JUST ANOTHER TARP SYSTEM
Careers

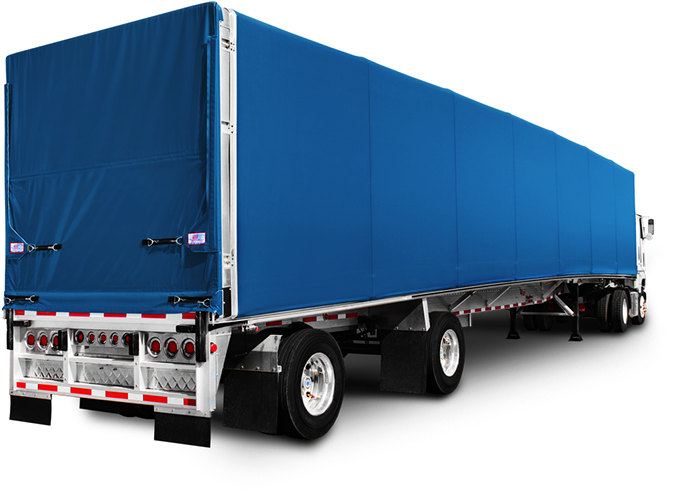

QUICK DRAW TARPAULIN SYSTEMS
DESIGN

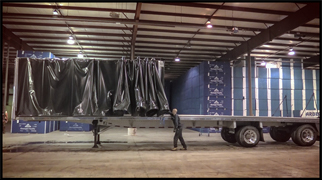

SAFE
Complete Ground Control
Compact

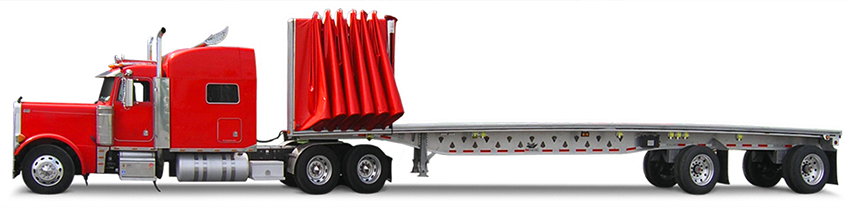

Occupies Only 8 Feet When Open
VERSATILE

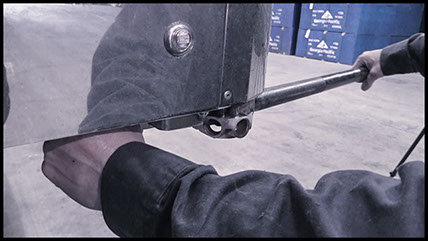

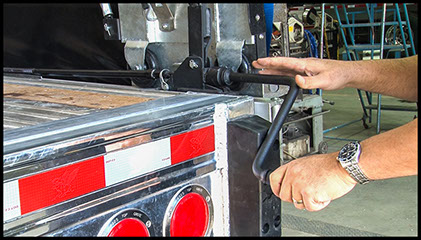

Tarp Tensioning at Both Front & Back
SMOOTH & SLEEK
No Fasteners Through Tarp

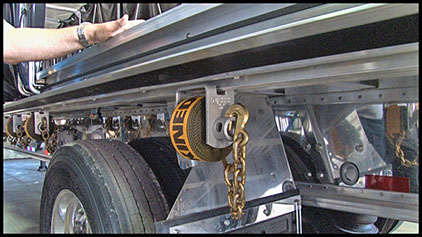

WEATHER
TIGHT

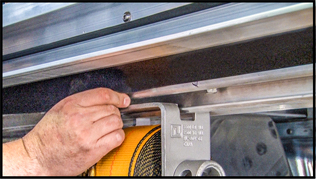

Self Sealing Bottom Edge
FEATURES
Lowest Price Over Product Life
Longest lasting system with the lowest costs to operate & mantain - time tested & proven!read more
Quick Draw has worked with several large customers who own a combination of Quick Draw and competitive tarp systems to compare costs over several years of operation. The results show Quick Draw to be the lowest cost tarp system over a 3 to 5 year period. With Quick Draw, you will not be surprised with excessive downtime and repair costs down the road.
Honest Fair Reasonable Pricing for All
Quick Draw uses standard book pricing, no surprises or hidden costs!
read more
Quick Draw has a price book and uses it for all customers! Amongst Quick Draw customers, there are no poor chumps who paid more to compensate for shrewd customers who paid less. Common repair work is also priced by the book. Quick Draw truly provides honest and fair pricing for all.
Top Grade Warranty - In Writing
Standard 1 YEAR warranty on manufacturing defects (includes parts & labour!)
EXCLUSIVE 5 YEAR warranty on:
- 4” top rolling wheels (bearings included)
- Intermediate bows
- Die cast corners
- + FREE 6 & 12 month service inspections!
In House Custom Graphics
- Creative, colourful & functional designs
- Endless possibilities!
- Done in house to keep costs down & control quality!

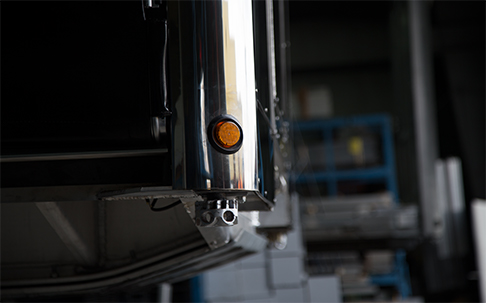

QUALITY
Quick Draw’s patented design provides large 4” diameter top rolling wheels and a track that does not catch dirt. High performance, high temperature range grease is used in sealed guide wheels to ensure smooth rolling in extreme weather conditions. These top quality wheels are long lasting, easier and less costly to change than other competitive tarp systems.

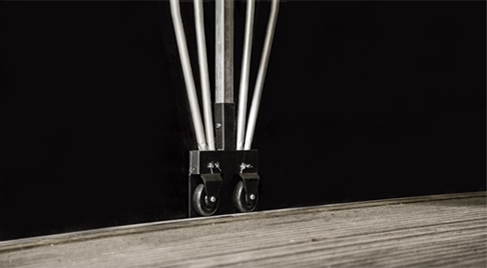

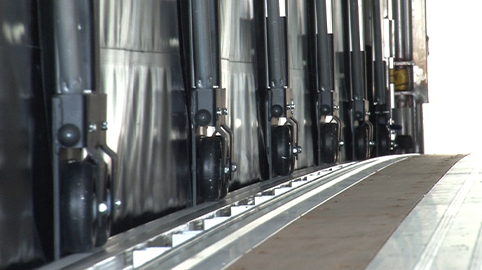

Unique Wheels & Track
- Patented 4” top rolling wheels & tough track
- Smooth & easy rolling in all weather conditions
- No dirt or debris gets caught in the track
- Our top rolling wheels are the longest
- lasting & easiest to roll
- Lowest costs to change & maintain
- Exclusive 5 year warranty on top rolling wheels!
read more
Quick Draw provides extremely high tension to tarps because it makes vehicles look good, makes tarps last longer and increases fuel efficiency. Quick Draw uses only premium quality vinyl tarp material and provides in-house laser graphics service where printing quality can be controlled to the highest levels.

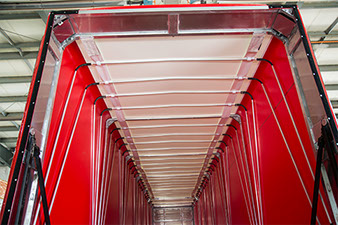

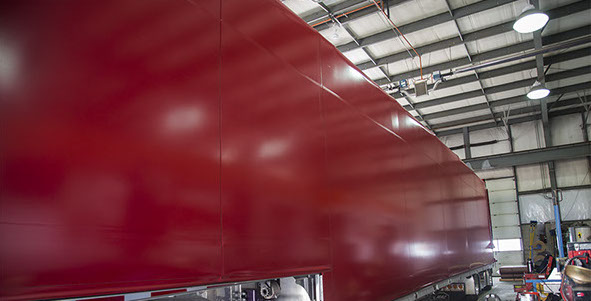

Exceptionally Tight Tarps
- Premium quality vinyl used
- Sectional tarps
- In house custom graphics
- Unique front & rear tensioning keeps tarps tight!
read more

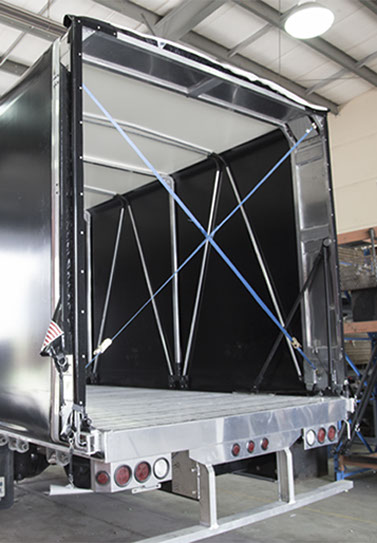

Quick Draw pioneered the idea of the adjustable rear bow to equalize tarp tension from top to bottom, make minor adjustments to compensate for tarp stretch over time and adjust tarps for different vehicle shapes and loading conditions.

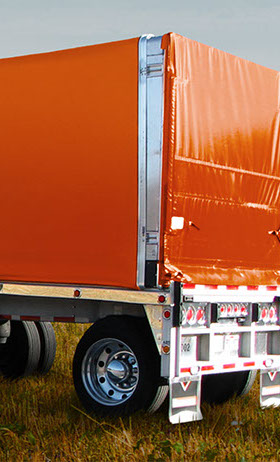

Adjustable Rear Bow
- Equalizes tarp tension from top to bottom
- Keeps tarps tight over time no matter what load,
weather or vehicle type!
read more
Slim & Strong Headboard
- Features 3/16” aluminum plate with a high
strength framework
- Very slim design – measures only 5.5” from
its front face to back
- Front mounted – full bed space available for loading!
SERVICE
Quick Draw continues to grow its ability to serve customers better by having 8 BRANCHES that are fully capable of installations and repairs. Combine these branches with numerous QUALIFIED DEALERS across North America and Quick Draw provides its customers with superb access to repair facilities whenever and wherever needed.
Most Full-Service Branches
- Fast, convenient, quality service!
- 8 Branches
- Qualified Dealers across North America
to serve our customers!
read more
Combining a modular design with a framework that has been consistent over the past 17 years and serial numbers for each tarp system provides customers with the benefit of replacement parts that are always ready for shipment and always fit properly. These are important aspects of Quick Draw’s commitment to keep customer’s vehicles on the road longer with less downtime.

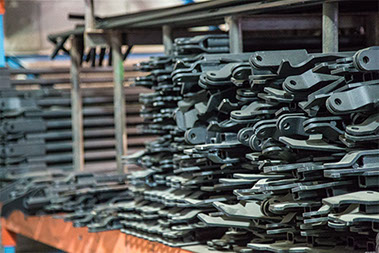

Parts Are Ready
- All parts are kept in stock for fast & easy service
- Serial # tracking system allows for accurate
parts & service
read more
OPTIONS
customize your system

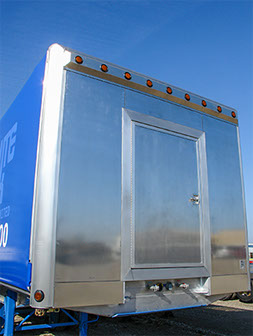

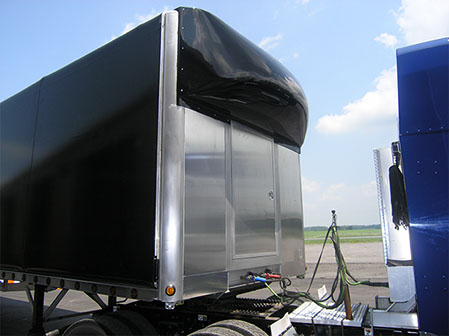

- Headboard Access Door

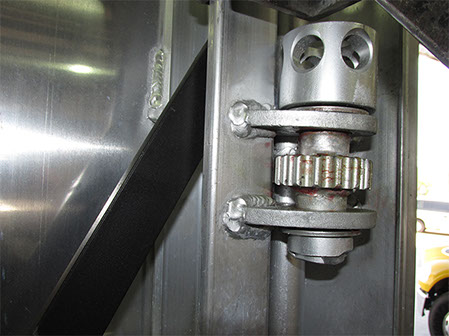

- Interior Ratcheting - for tensioning the tarp system from inside the vehicle
- Headboard Lightbar

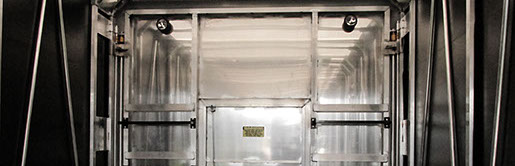

- Interior Spot Lights

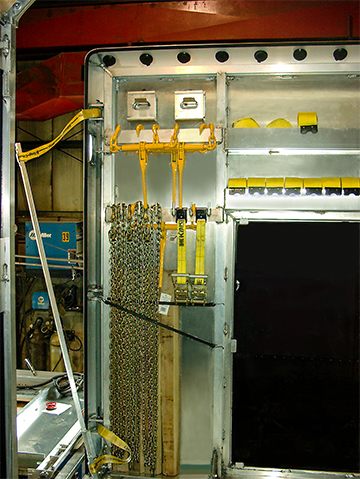

- Chain Binder Bars, Shelves and Boxes - mounted behind the headboard
- D.O.T. Approved Headboard
- Wind Deflector (Nosecone® Brand)-to increase fuel efficiency

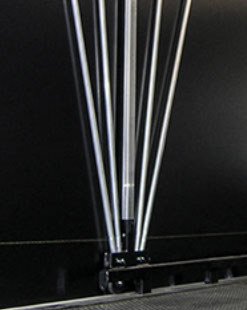

- Four Point Lifter Bows - to raise the tarp over high loads
- Van Doors
- Lightbars - mounted below the track
- Mirror Finish Stainless Steel Wrap - for most aluminum hardware components
DEMONTE PLATFORMS
Our custom Aluminum Platforms score high on appearance with no painting or rusting and offer a LIGHT WEIGHT SOLUTION to customers who want more payload. Load securement points integrated into EXTRUDED SIDE RAILS and easy clean debris shedding integrated crossmembers and floor are unique features that make this platform a premium choice.
A STANDARD PLATFORM INCLUDES:
- With or without pockets
- 96” or 102” Width
- any length
- Lighting and wiring conform to FMVSS, CMVSS
- Main sills 8” aluminum extruded box section
- Integrated winch track
- Integrated ‘J’ plate tie down track
- Aluminum extruded combination floor and cross members
- ICC bumper and mud flaps

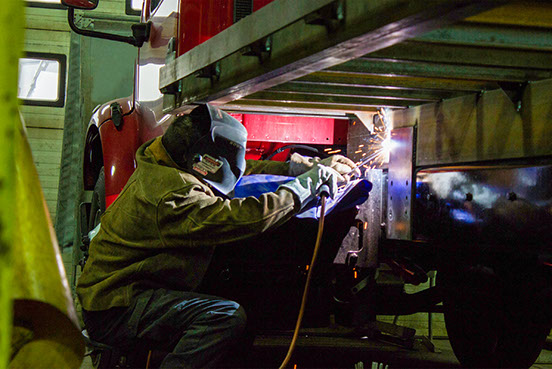

- All welding conforms to CWB-W59.2 standards
- Double jacketed custom made heavy duty wire harness to protect against road splash and abrasion
- Welded shear plates bolted to chassis frame
- Designed to meet cargo capacity as specified by chassis manufacturer
OPTIONS TO CHOOSE FROM:
- Sliding webbing winches
- Various nylon cargo straps
- CNC cut diamond pattern window on a 4’ high bulkhead
- Lexan window installed on Quick Draw headboard
- Interior spot lights
- Bulkhead tool box/ underbody tool box
- Dock bumpers
- One or two safety grip folding steps on rear
- Deluxe ICC bumper
- Deluxe tail light boxes with LED lights
- Custom options available

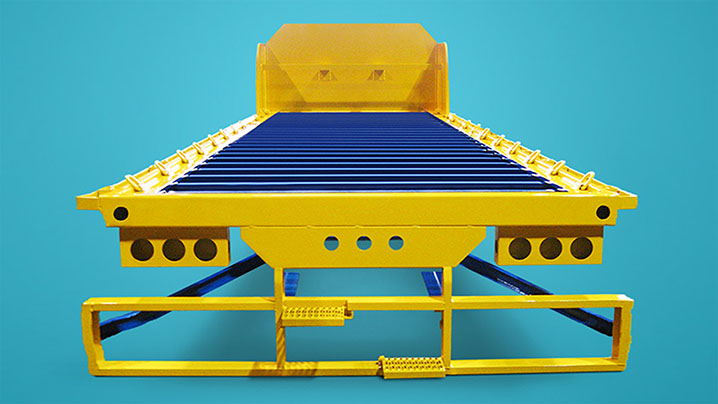

A STANDARD PLATFORM INCLUDES:
- With or without pockets
- 96” or 102” width
- Any length
- Lighting and wiring conform to all FMVSS, CMVSS
- 8” structural channel main sills (6” optional)
- 6” structural steel channel side rails with 6” formed steel rear apron
- 4” structural steel channel cross members on 12” centers (3”optional)
- 1-3/8” apitong wood floor
- ICC bumper and mud flaps
- Designed to meet cargo capacity as specified by chassis manufacturer
- Structures sand blasted and primed with epoxy
- Polyester urethane enamel black paint finish
- All welding conforms to CWB-W59 standards
- Double jacketed custom made heavy duty wire harness to protect against road splash and abrasion
- Welded shear plates bolted to chassis frame
OPTIONS TO CHOOSE FROM:
- Sliding webbing winches
- Various nylon cargo straps
- CNC cut diamond pattern window on a 4’ high bulkhead
- Lexan window installed on Quick Draw headboard
- Interior spot lights
- Bulkhead tool box/ Underbody tool box
- Dock bumpers
- One or two safety grip folding steps on rear
- Deluxe ICC bumper
- Deluxe tail light boxes with LED lights
- Custom options available

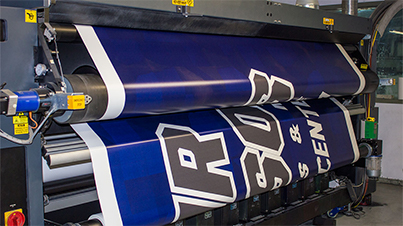

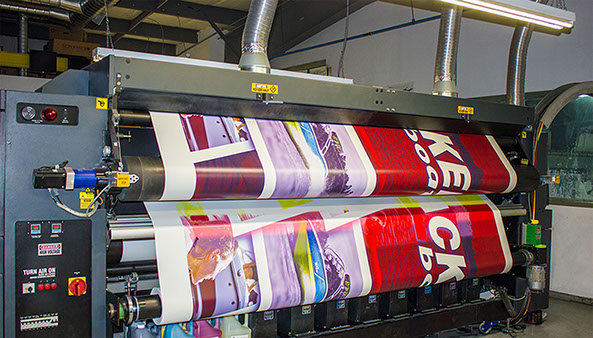

IN HOUSE LASER GRAPHICS

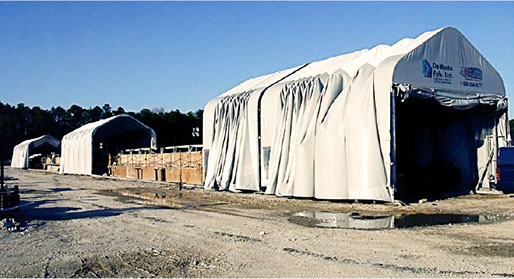

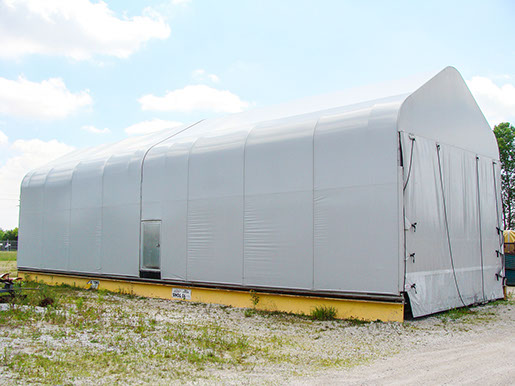

QRS Series Rolling Shelters
Quick Draw Tarpaulin Systems rolling shelters are retractable building structures that provide shelter against outside weather conditions.
QSS Series Static Shelters
Quick Draw Tarpaulin Systems static shelters are non-retractable building structures that provide shelter against outside weather conditions.

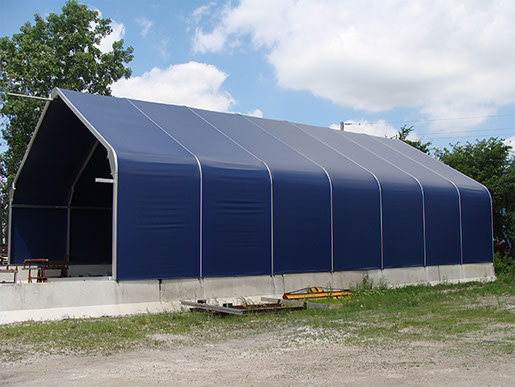

QUICKDOME SHELTERS ARE:
Weatherproof
- Warm in the Winter
- Cool in the Summer
- Protects from the elements
Quality Design
- 22oz Premium coated vinyl
- Heavy duty aluminum framework
- Solid & sturdy design
Versatile
- Retractable Shelters for quick access to work area
- Easy access for overhead cranes & other lifting devices
Customized
- Made for indoor or outdoor applications
- Custom sizes to meet specific requirements
- Variety of door options
- Laser graphics to advertise your company

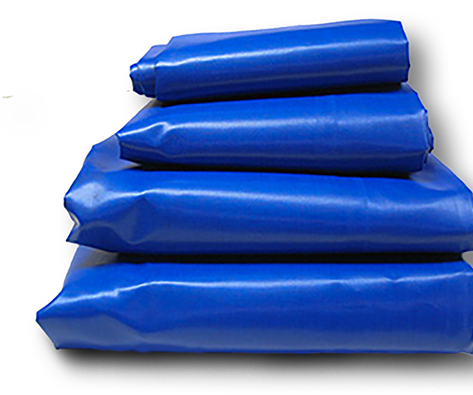

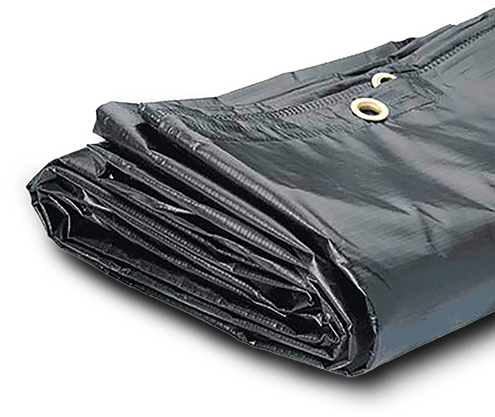

LUMBER & STEEL TARPS
Featuring:
✓ A wide variety of lumber and steel tarps available
✓ Tarps made from premium quality materials to ensure a long
tarp life
✓ Many colours, common sizes, custom sizes and company name
stencilling can be ordered
Details:
All sizes are "finished" sizes and D-ring row count does not include the row of grommets along the bottom edge.
Some lumber tarps are available with lighter material on side tarps.
For example, 18/10 oz specifies 18 oz tarp used on top and 10 oz used on sides. This construction has the advantage of being several pounds lighter weight than the full 18 oz tarp whereas the full 18 oz tarp has the advantage of being stronger. The 18/14 oz lumber tarp is a compromise between 18/10 oz and full 18 oz.
| Item ID | Description | Price USD |
Price CAD |
Specs |

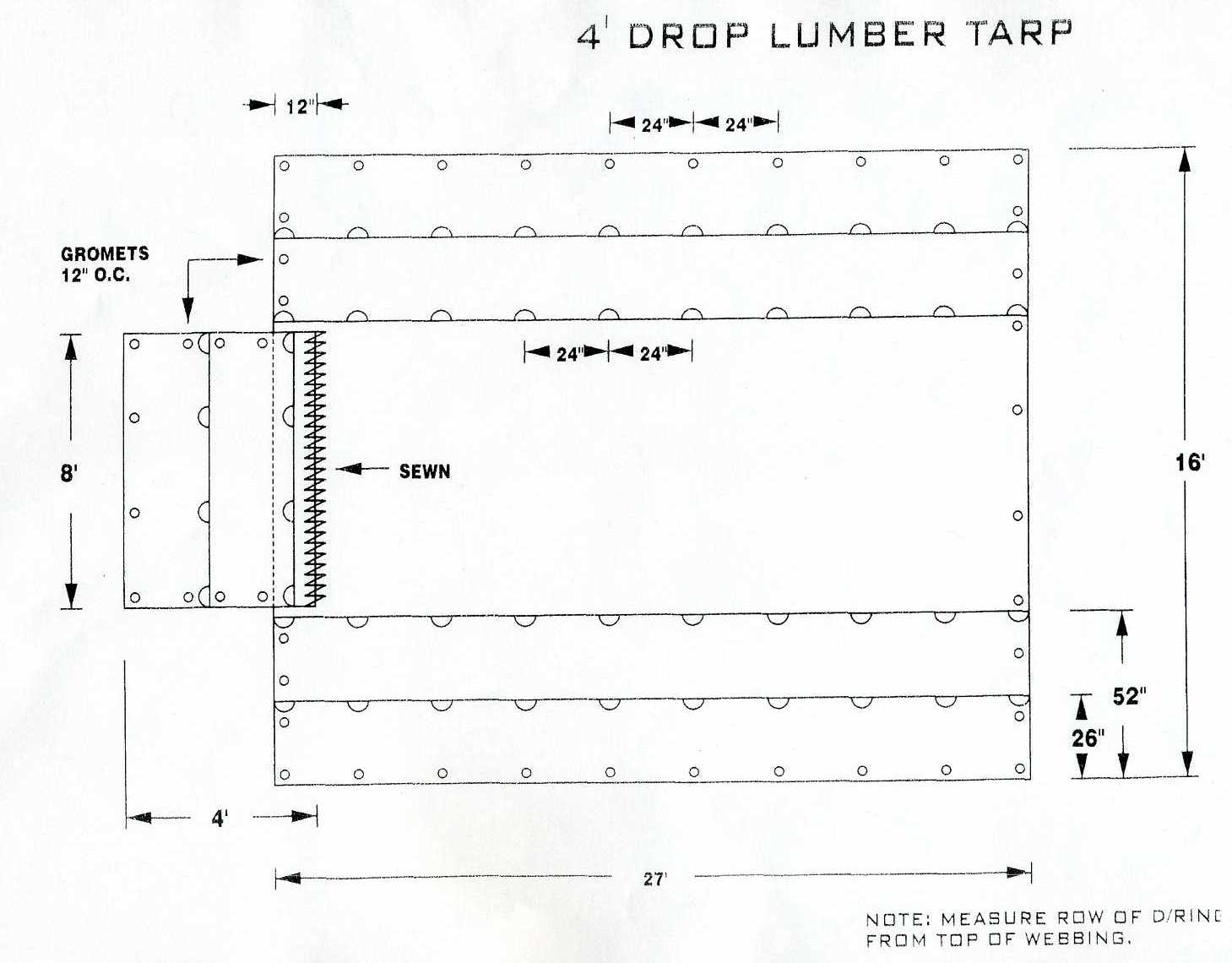

| 20615 | Lumber Tarp with 4' Drop; 27'L x 16'W with flap; 18 Oz Black | Call | Call | Specs |

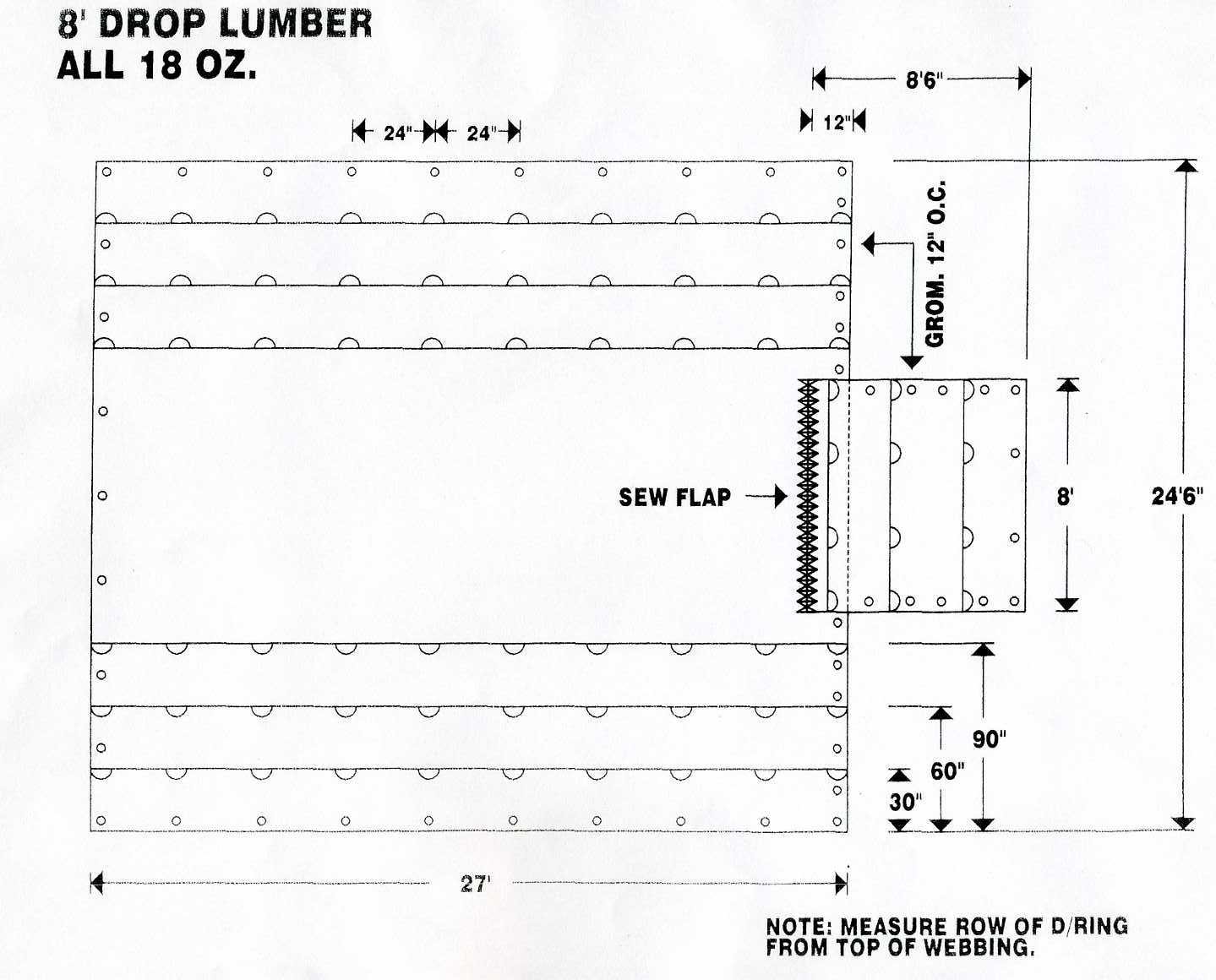

| 20614 | Lumber Tarp with 8' Drop; 27'L x 24'-6"W with flap; 18 Oz Black | Call | Call | Specs |

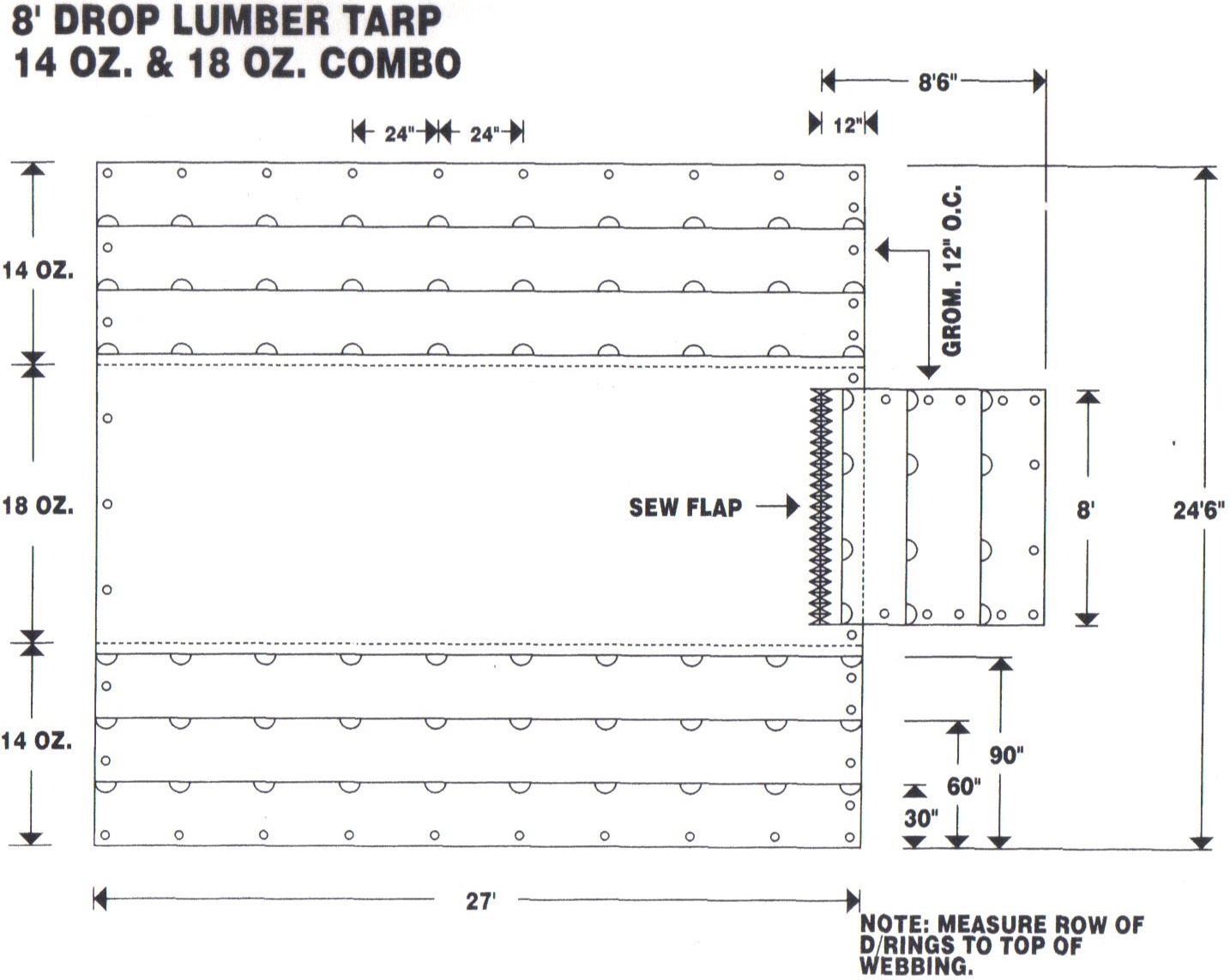

| 20802 | Lumber Tarp with 8' Drop; 27'L x 24'-6"W with flap; 18/14 Oz Black | Call | Call | Specs |

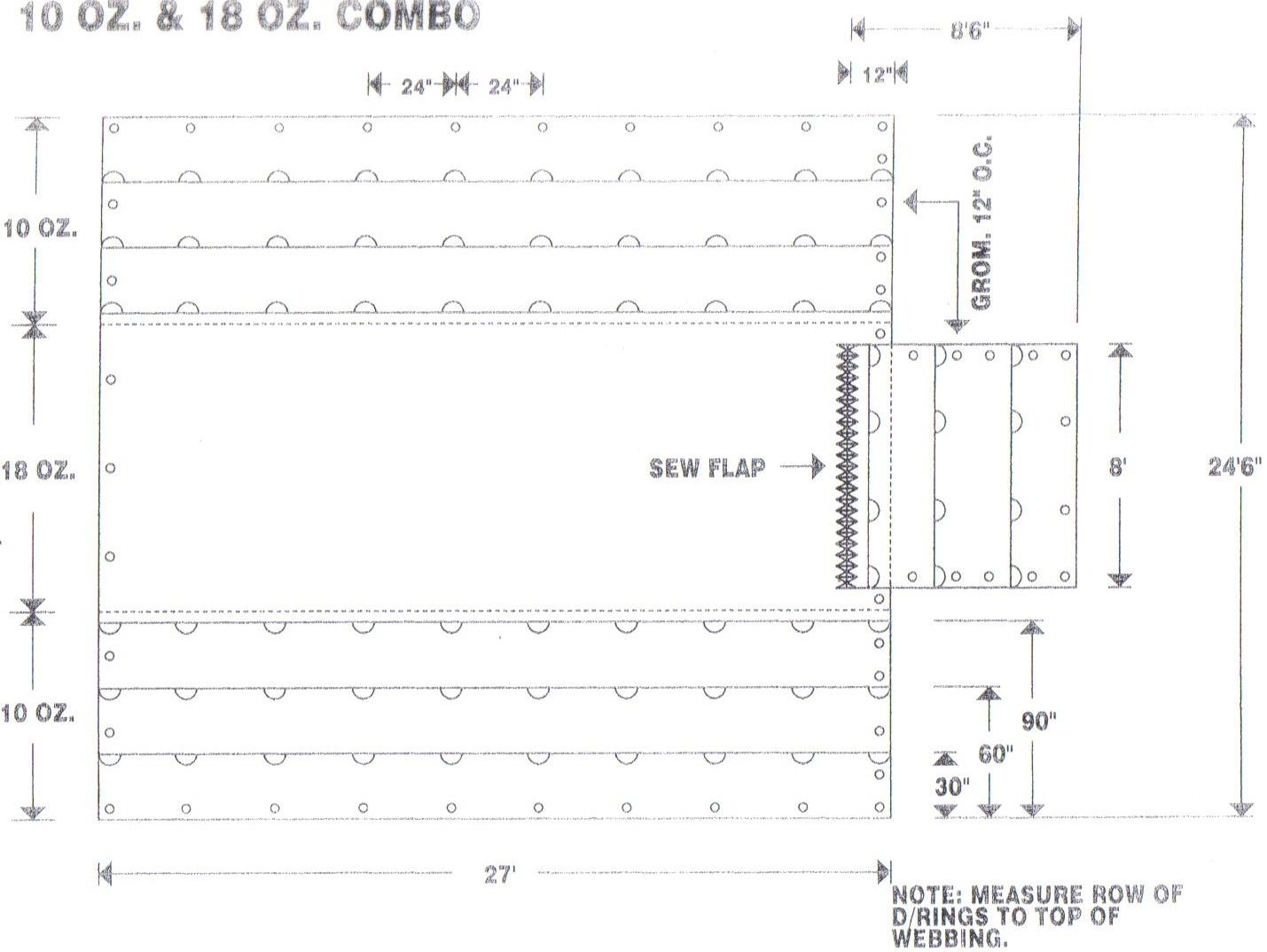

| 20803 | Lumber Tarp with 8' Drop; 27'L x 24'-6"W with flap; 18/10 Oz Black | Call | Call | Specs |

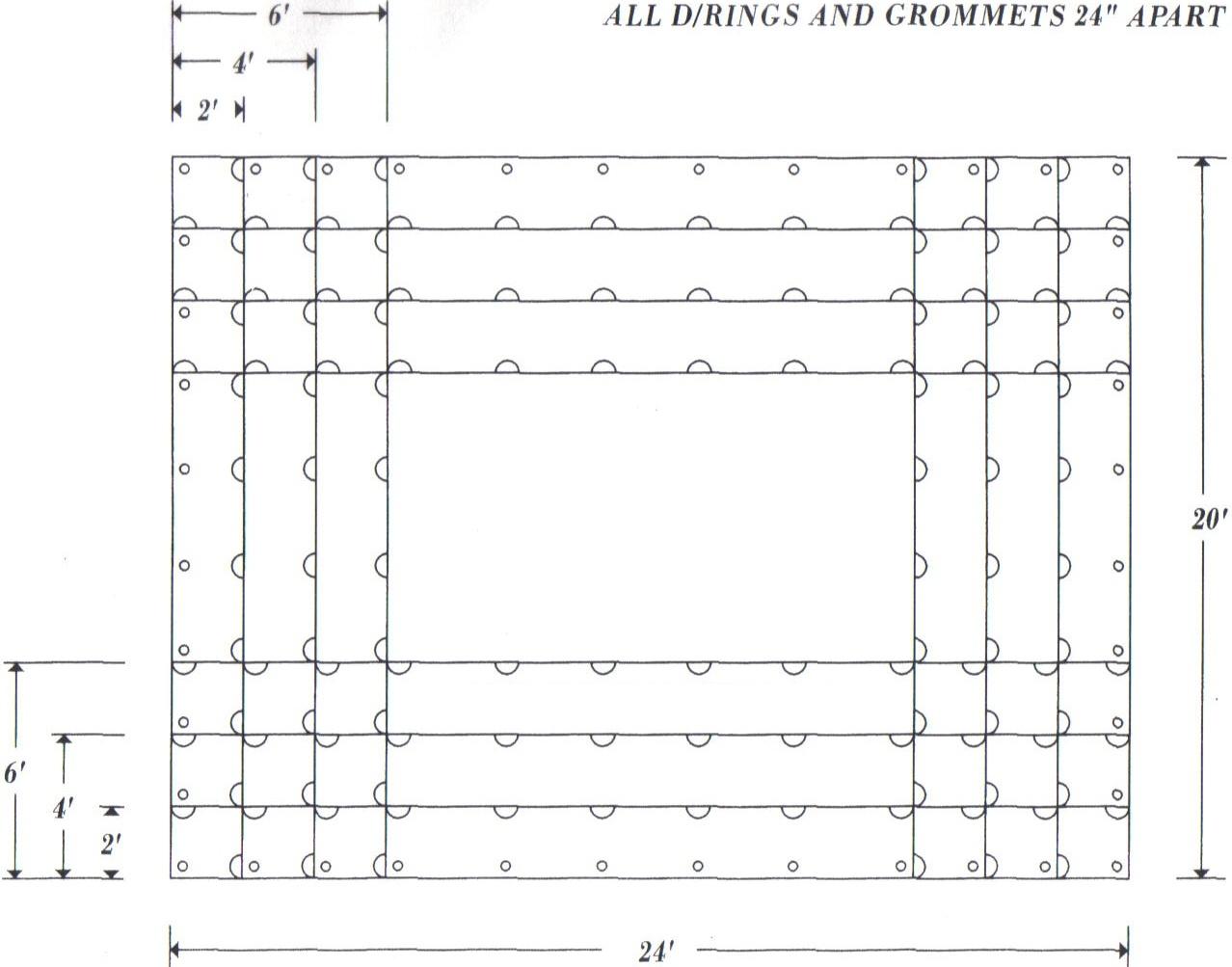

| 20798 | Steel Tarp; 20'L x 24'W; 3 rows of D-rings on 4 sides; 18 Oz Black | Call | Call | Specs |

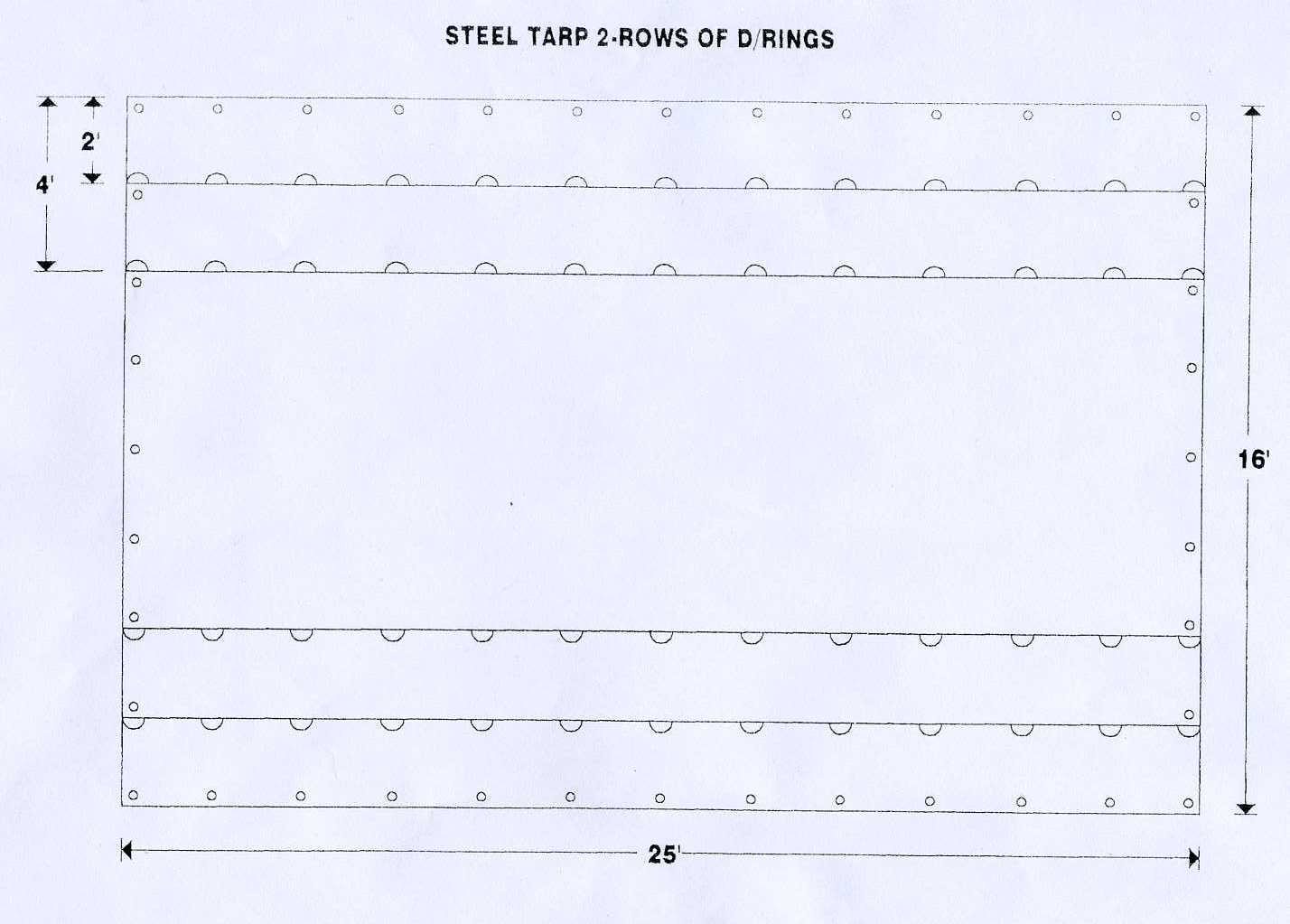

| 20617 | Steel Tarp; 25'L x 16'W; 2 rows of D-rings on 2 sides; 18 Oz Black | Call | Call | Specs |

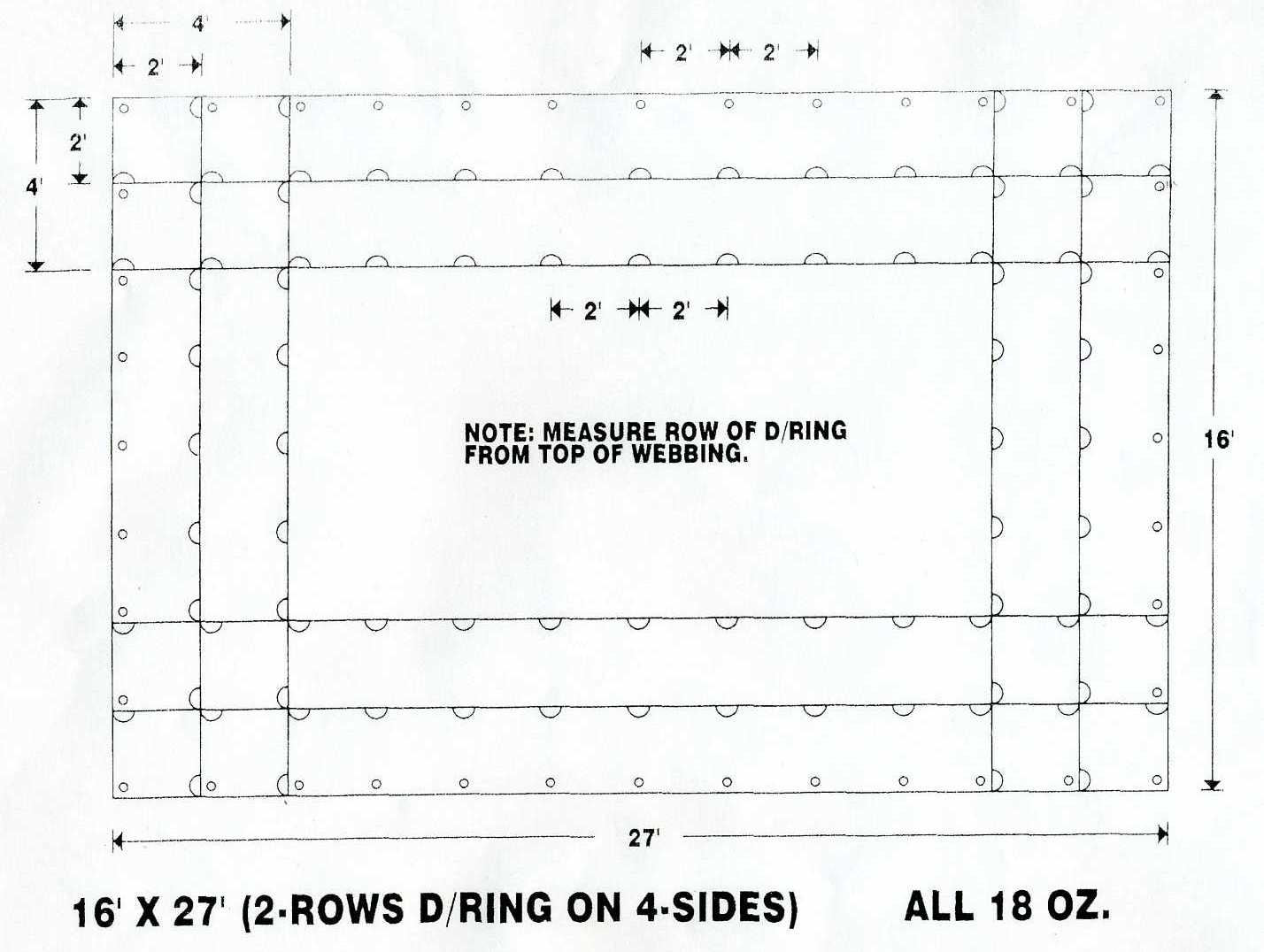

| 20616 | Steel Tarp; 27'L x 16'W; 2 rows of D-rings on 4 sides; 18 Oz Black | Call | Call | Specs |
All tarps listed are stocked & available only at Quick Draw Branches, (not Dealers).
All tarps are manufactured in the USA.
SIDE KITS

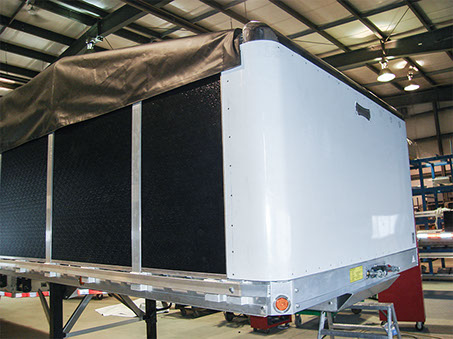

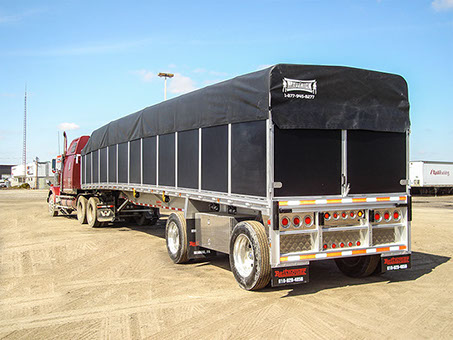

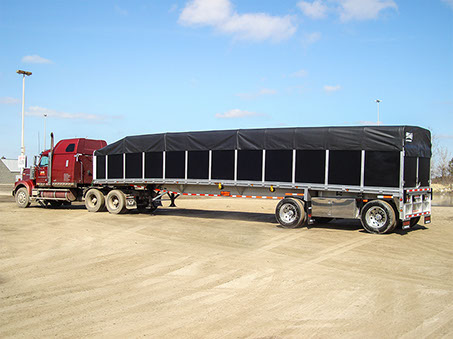

Quick Draw Tarpaulin Systems, the industry leader in rolling tarp systems for flatbed trucks and trailers, is proud to introduce the "Maverick"; the next generation of side kits for flatbed vehicles.
This innovative side kit tarp system features:
✓ A smooth aerodynamic outer surface designed to
increase fuel efficiency
✓ Side panels located at maximum vehicle width to
increase cargo space
✓ A tarp and post hold down technique that
eliminates bungee cords
✓ A tarp tensioning mechanism that pulls the tarp
tight
✓ The Maverick can be easily installed on any
standard flatbed vehicle
SMOOTH OUTER SURFACE
Aerodynamic headboard and posts increase fuel efficiency.
MAXIMUM WIDTH
Side panels are located at the maximum width of vehicle to allow for more cargo space.
NO BUNGEE CORDS REQUIRED
A new technology is used for holding down the tarp and posts.
TIGHT TARP
A tarp tensioning mechanism pulls the tarp towards the back of the vehicle.
RUBBER SEAL
Located along the bottom of each side panel ensures debris stays out of the trailer while allowing space for tie down straps to pass through.
BACK DOORS
Allow quick access to the inside of the vehicle.
FULLY REMOVABLE COMPONENTS
All components are easily removable similar to conventional side kits.
COMPATIBILITY
The Maverick can be easily installed on any standard flatbed vehicle designed to use a conventional side kit.
WARRANTY
1 year warranty covers manufacturing defects.
STAY CONNECTED
FOLLOW US
Disclaimer: "Quick Draw Tarpaulin Systems and related products are protected by US Patents 5,080,422; 5,152,575; 5,924,759; 7,350,842; 7,571,949, 7,854,465 and
Canadian Patents 2,013,531; 2,058,001; 2,197,750; 2,862,413. Other patents pending.
We reserve the right to modify, improve, alter and or change system specifications without notice."
