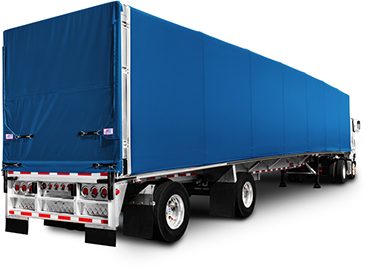

QUICK DRAW TARPAULIN SYSTEMS

  • Over 20 years experience!
  • More than 7500 happy customers!
  • Time tested & proven design!
  • Reliable performance year after year!
  • Lowest maintenance!
  • Highest quality!
  • Most service locations throughout North America!

top

DESIGN

SAFE

Complete Ground Control

top

Compact

Occupies Only 8 Feet

When Open

top

VERSATILE

Tarp Tensioning at Both

Front & Back

top

SMOOTH & SLEEK

top

No Fasteners

Through Tarp

WEATHER TIGHT

top

FEATURES

  • Lowest Price Over Product Life

    Longest lasting system with the lowest costs

    to operate & maintain – time tested & proven!

    read more

    Quick Draw has worked with several large customers who own a combination of Quick Draw and competitive tarp systems to compare costs over several years of operation.  The results show Quick Draw to be the lowest cost tarp system over a 3 to 5 year period.  With Quick Draw, you will not be surprised with excessive downtime and repair costs down the road.



top

  • Honest Fair Reasonable Pricing for All

    Quick Draw uses standard book pricing, no surprises or hidden costs!

    read more

    Quick Draw has a price book and uses it for all customers!  Amongst Quick Draw customers, there are no poor chumps who paid more to compensate for shrewd customers who paid less.  Common repair work is also priced by the book.  Quick Draw truly provides honest and fair pricing for all.

  • Top Grade Warranty

    Standard 1 YEAR warranty on manufacturing defects (includes parts & labour!)



    EXCLUSIVE 5 YEAR warranty on:

    • 4” top rolling wheels (bearings included)
    • Intermediate bows
    • Die cast corners
    • + FREE 6 & 12 month service inspections!

top

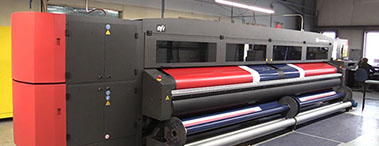

In House Custom Graphics

  • Creative, colourful & functional designs
  • Endless possibilities!
  • Done in house to keep costs down & control quality!

top

  • Built to Last

    • Over 20 years of proven reliability!
    • Maintains structural integrity year after year!
    • Less downtime & longest lasting!
  • Unique Wheels & Track

    • Patented 4” top rolling wheels & tough track
    • Smooth & easy rolling in all weather conditions
    • No dirt or debris gets caught in the track
    • Our top rolling wheels are the longest lasting & easiest to roll
    • Lowest costs to change & maintain
    • Exclusive 5 year warranty on top rolling wheels!

    read more

    Quick Draw’s patented design provides large 4” diameter top rolling wheels and a track that does not catch dirt.  High performance, high temperature range grease is used in sealed guide wheels to ensure smooth rolling in extreme weather conditions.  These top quality wheels are long lasting, easier and less costly to change than other competitive tarp systems.

Slim & Strong Headboard

  • Features 3/16” aluminum plate with a high strength framework
  • Very slim design – measures only 5.5” from its front face to back
  • Front mounted – full bed space available for loading!

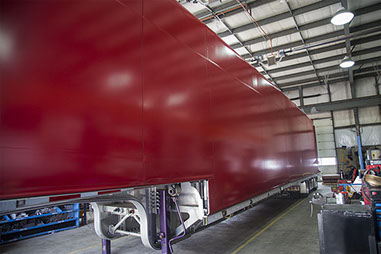

  • Exceptionally Tight Tarps

    • Premium quality vinyl used
    • Sectional tarps
    • In house custom graphics
    • Unique front & rear tensioning keeps tarps tight!

      read more

    Quick Draw provides extremely high tension to tarps because it makes vehicles look good, makes tarps last longer and increases fuel efficiency.  Quick Draw uses only premium quality vinyl tarp material and provides in-house laser graphics service where printing quality can be controlled to the highest levels.

  • Adjustable Rear Bow

    • Equalizes tarp tension from top to bottom
    • Keeps tarps tight over time no matter what load, weather or vehicle type!

      read more

    Quick Draw pioneered the idea of the adjustable rear bow to equalize tarp tension from top to bottom, make minor adjustments to compensate for tarp stretch over time and adjust tarps for different vehicle shapes and loading conditions.

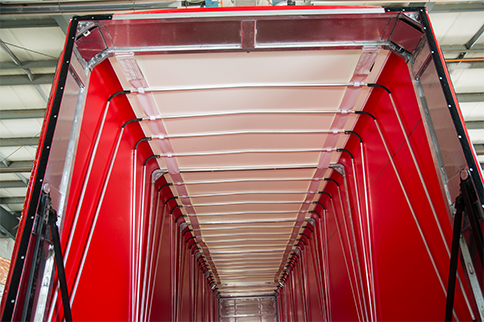

QUALITY

top

  • Most Full-Service Branches

    • Fast, convenient, quality service!
    • 8 Branches
    • Qualified Dealers across North America to serve our customers!

      read more

    Quick Draw continues to grow its ability to serve customers better by having 7 BRANCHES that are fully capable of installations and repairs.  Combine these branches with over 25 QUALIFIED DEALERS across North America and Quick Draw provides its customers with superb access to repair facilities whenever and wherever needed.

  • Parts Are Ready

    • All parts are kept in stock for fast & easy service
    • Serial # tracking system allows for accurate parts & service

      read more

    Combining a modular design with a framework that has been consistent over the past 17 years and serial numbers for each tarp system provides customers with the benefit of replacement parts that are always ready for shipment and always fit properly.  These are important aspects of Quick Draw’s commitment to keep customer’s vehicles on the road longer with less downtime.

FREE 6 & 12 Month Inspections

  • Part of our commitment

   to you!

  • Drop in for a quick, thorough & free inspection at any of our convenient locations!



SERVICE

top

customize your system

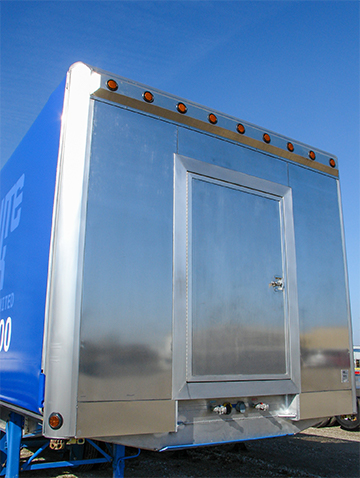

  • Headboard Access Door
  • Interior Ratcheting - for tensioning the tarp System from inside the vehicle
  • Headboard Lightbar
  • Interior Spot Lights
  • Chain Binder Bars, Shelves and Boxes - mounted behind the headboard
  • D.O.T. Approved Headboard
  • Wind Deflector (Nosecone® Brand)-to increase fuel efficiency
  • Four Point Lifter Bows - to raise the tarp over highloads

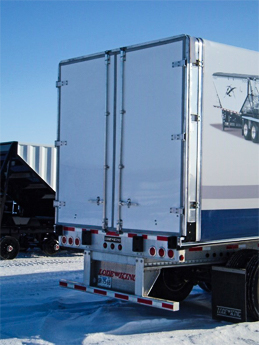

  • Van Doors

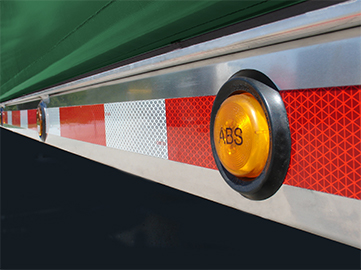

  • Lightbars - mounted below the track
  • Mirror Finish Stainless Steel Wrap - for most aluminum hardware components



OPTIONS

top

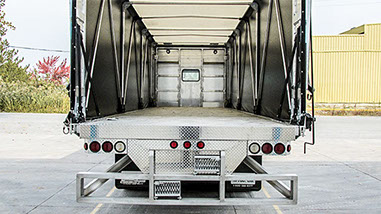

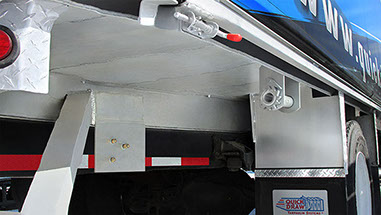

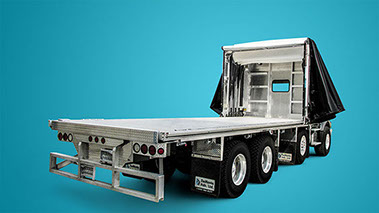

Our custom Aluminum Platforms score high on appearance with no painting or rusting and offer a LIGHT WEIGHT SOLUTION to customers who want more payload. Load securement points integrated into EXTRUDED SIDE RAILS and easy clean debris shedding integrated crossmembers and floor are unique features that make this platform a premium choice.

A STANDARD PLATFORM INCLUDES:

  • With or without pockets
  • 96” or 102”
  • Width any length
  • Lighting and wiring conform to FMVSS, CMVSS
  • Main sills 8” aluminum extruded box section
  • Integrated winch track
  • Integrated ‘J’ plate tie down track
  • Aluminum extruded combination floor and cross members
  • ICC bumper and mud flaps
  • All welding conforms to CWB-W59.2 standards
  • Double jacketed custom made heavy duty wire harness to protect against road splash and abrasion
  • Welded shear plates bolted to chassis frame
  • Designed to meet cargo capacity as specified by chassis manufacturer

OPTIONS TO CHOOSE FROM:

  • Sliding webbing winches
  • Various nylon cargo straps
  • CNC cut diamond pattern window on a 4’ high bulkhead
  • Lexan window installed on Quick Draw headboard
  • Interior spot lights
  • Bulkhead tool box/ underbody tool box
  • Dock bumpers
  • One or two safety grip folding steps on rear
  • Deluxe ICC bumper
  • Deluxe tail light boxes with led lights
  • Custom options available

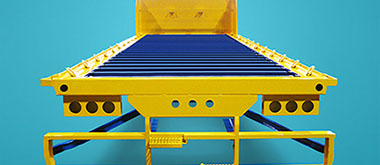

DEMONTE PLATFORMS

top

A STANDARD PLATFORM INCLUDES:

  • With or without pockets
  • 96” or 102” width
  • Any length
  • Lighting and wiring conform to all FMVSS, CMVSS
  • 8” structural channel main sills (6” optional)
  • 6” structural steel channel side rails with 6” formed steel   rear apron
  • 4” structural steel channel cross members on 12” centers    (3”optional)
  • 1-3/8” apitong wood floor
  • ICC bumper and mud flaps
  • Designed to meet cargo capacity as specified by chassis manufacturer
  • Structures sand blasted and primed with epoxy
  • Polyester urethane enamel black paint finish
  • All welding conforms to CWB-W59 standards
  • Double jacketed custom made heavy duty wire harness to protect against road splash and abrasion
  • Welded shear plates bolted to chassis frame

OPTIONS TO CHOOSE FROM:

  • Sliding webbing winches
  • Various nylon cargo straps
  • CNC cut diamond pattern window on a 4’ high bulkhead
  • Lexan window installed on Quick Draw headboard
  • Interior spot lights
  • Bulkhead tool box/ Underbody tool box
  • Dock bumpers
  • One or two safety grip folding steps on rear
  • Deluxe ICC bumper
  • Deluxe tail light boxes with LED lights
  • Custom options available

top

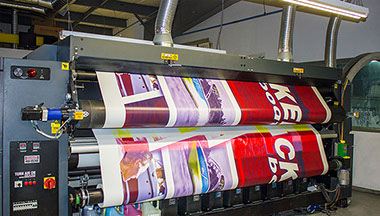

IN HOUSE LASER GRAPHICS

top

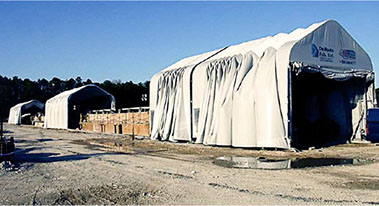

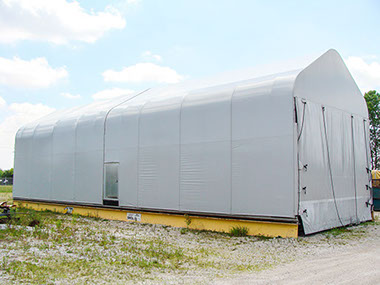

QRS Series Rolling Shelters

Quick Draw Tarpaulin Systems rolling shelters are retractable building structures that provide shelter against outside weather conditions.

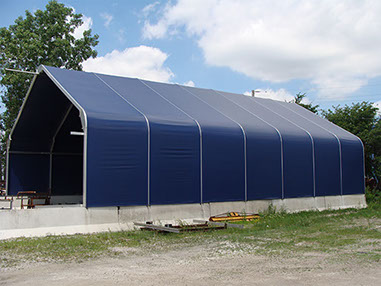

QSS Series Static Shelters

Quick Draw Tarpaulin Systems static shelters are non-retractable building structures that provide shelter against outside weather conditions.



Weatherproof

  •  Warm in the Winter
  •  Cool in the Summer
  •  Protects from the elements



Quality Design

  • 22oz Premium coated vinyl
  • Heavy duty aluminum framework
  • Solid & sturdy design

Versatile

  • Retractable Shelters for quick access to work area
  • Easy access for overhead cranes & other lifting devices



Customized

  • Made for indoor or outdoor applications
  • Custom sizes to meet specific requirements
  • Variety of door options
  • Laser graphics to advertise your company

top

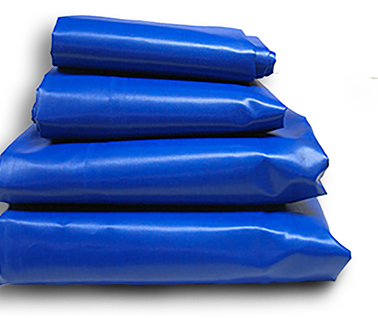

Featuring:



  • A wide variety of lumber and steel tarps available



  • Tarps made from premium quality materials to ensure a long tarp life



  • Many colours, common sizes, custom sizes and company name stencilling can be ordered

top

Details:



All sizes are "finished" sizes and D-ring row count does not include the row of grommets along the bottom edge.



Some lumber tarps are available with lighter material on side tarps.



For example, 18/10 oz specifies 18 oz tarp used on top and 10 oz used on sides. This construction has the advantage of being several pounds lighter weight than the full 18 oz tarp whereas the full 18 oz tarp has the advantage of being stronger. The 18/14 oz lumber tarp is a compromise between 18/10 oz and full 18 oz.

Item ID 20615

Lumber Tarp with 4' Drop; 27'L x 16'W with flap;

18 Oz Black



Price

USD Call

CA Call

Item ID 20614

Lumber Tarp with 8' Drop; 27'L x 24'-6"W with flap;

18 Oz Black



Price

USD $474.00

CA $599.00

Item ID 20802

Lumber Tarp with 8' Drop; 27'L x 24'-6"W with flap; 18/14 Oz Black



Price

USD $474.00

CA $599.00

Item ID 20803

Lumber Tarp with 8' Drop; 27'L x 24'-6"W with flap; 18/10 Oz Black



Price

USD $474.00

CA $599.00

Item ID 20798

Steel Tarp; 20'L x 24'W; 3 rows of D-rings on 4 sides; 18 Oz Black



Price

USD Call

CA Call

Item ID 20617

 Steel Tarp; 25'L x 16'W; 2 rows of D-rings on 2 sides; 18 Oz Black



Price

USD Call

CA Call

Item ID 20616

Steel Tarp; 27'L x 16'W; 2 rows of D-rings on 4 sides; 18 Oz Black



Price

USD Call

 CA Call

All tarps listed are stocked & available only at Quick Draw Branches, (not Dealers)



All tarps are manufactured in the USA.

LUMBER & STEEL TARPS

top

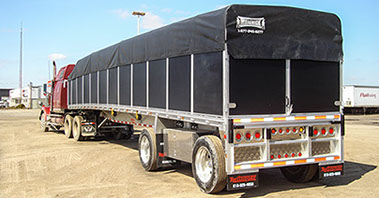

SIDE KITS

Quick Draw Tarpaulin Systems, the industry leader in rolling tarp systems for flatbed trucks and trailers, is proud to introduce the "Maverick"; the next generation of side kits for flatbed vehicles.

  • A smooth aerodynamicouter surface designed toincrease fuel efficiency



  • Side panels located at  maximum vehicle width to increase cargo space



  • A tarp and post hold down technique that eliminates bungee cords



  • A tarp tensioning mechanism that pulls the tarp tight



  • The Maverick can be easily installed on any standard flatbed vehicle.



SMOOTH OUTER SURFACE

Aerodynamic headboard and posts increase fuel efficiency.



MAXIMUM WIDTH

Side panels are located at the maximum width of vehicle to allow for more cargo space.



NO BUNGEE CORDS REQUIRED

A new technology is used for holding down the tarp and posts.



TIGHT TARP

A tarp tensioning mechanism pulls the tarp towards the back of the vehicle.



RUBBER SEAL

Located along the bottom of each side panel ensures debris stays out of the trailer while allowing space for tie down straps to pass through.



BACK DOORS

Allow quick access to the inside of the vehicle.



FULLY REMOVABLE COMPONENTS

All components are easily removable similar to conventional side kits.



COMPATIBILITY

The Maverick can be easily installed on any standard flatbed vehicle designed to use a conventional side kit.



WARRANTY

1 year warranty covers manufacturing defects.

This innovative side kit tarp system features:

top

STAY CONNECTED

FOLLOW US

Disclaimer: "Quick Draw Tarpaulin Systems and related products are protected by US Patents 5,080,422; 5,152,575; 5,924,759; 7,350,842; 7,571,949, 7,854,465 and

Canadian Patents 2,013,531; 2,058,001; 2,197,750; 2,862,413.

Other patents pending.

We reserve the right to modify, improve, alter and or change system specifications without notice."
